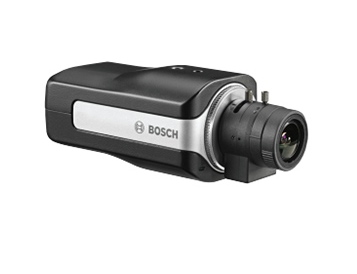

Camera Bosch DINION IP 4000 HD
| Power Supply | 12 VDC Power-over-Ethernet 48 VDC nominal |
| Current Consumption | 267 mA (12 VDC) 67 mA (PoE 48 VDC) |
| Power Consumption | 3.2 W |
| PoE | IEEE 802.3af (802.3at Type 1) Power level: Class 1 |
| Sensor type | 1/2.7‑inch CMOS |
| Total sensor pixels | 1952 x 1092 (2MP) |
| Color | 0.25 lx |
| Mono | 0.05 lx |
| Dynamic range | 76 dB Wide Dynamic Range (WDR) |
| Video compression | H.264 (MP); M-JPEG |
| Streaming | Multiple configurable streams in H.264 and M-JPEG, configurable frame rate and bandwidth. Regions of Interest (ROI) |
| Overall IP Delay | Min. 120 ms, Max. 340 ms |
| GOP structure | IP, IBP, IBBP |
| Encoding interval | 1 to 30 ips |
| 720p HD | 1280 x 720 |
| 1.3 MP (4:3) | 1280 x 960 |
| Upright 9:16 (cropped) | 400 x 720 |
| D1 4:3 (downscaled/cropped) | 704 x 480 |
| 480p SD | Encoding: 704 x 480; Displayed: 854 x 480 |
| 432p SD | 768 x 432 |
